Analog Temperature Controller เครื่องควบคุมอุณหภูมิแบบอะนาลอก
LC-48AD.jpgLC-48,LC-48D, LC-48S,LC-48DS,LC-703,LC-704,LC-72,LC-72D,LC-72S,LC-72DS,LC-48A,LC-73N,LC-48AD
|
CLASSIFICATION
|
48mmX96mm TEMPERATURE CONTROLLER
|
|
MODEL
|
LC-48
|
|
DIMENSION
|
96HX48WX108D
|
|
DISPLAY MODEL
|
|
|
SCALE RANGE
|
DIGITSETTING: 0 99.9oC, 0 199oC,0 999oC
|
|
INPUT TYPE
|
K GRADUATION, J GRADUATION, PLATINUM RESISTANCE Pt100
|
|
SETTING ACCURACY
|
Less than 1.5% full scale
|
|
INDICATED ACCURAY
|
Less than 2.5%
|
|
CONTROL FORM
|
ON/OFF only, proporation(PD)
|
|
OUTPUT MODEL
|
Relay SPDT 5A 250VAC,12VDC for SSR drive
|
|
RAGED VOLTAGE
|
AC:110/220V 15%, 50/60Hz
|
|
PROPORTIONAL CYCLE
|
RELAY OUTPUT: 25SEC, SSR OUTPUT:2SEC
|
|
CONCUMED POWER
|
About: 3.5VA
|
|
ACCESSORY FUNCTION
|
Recongnition sensor break
|
|
AMBIENT TEMPERATURE
|
Temperature 0oC～+50oC Humidity 85%RH
|
|
INSULATION STRNGTH
|
AC1500V, 1MIN (POWER END AND EXTERNAL JUNCTION END)
|
|
INRTULATION RESISTANCE
|
100M , DC500V (POWER END AND EXTERNAL JUNCTION END)
|
|

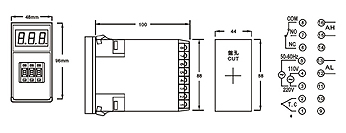

DIMENSION(mm)
|
|
|
CLASSIFICATION
|
48mmX96mm TEMPERATURE CONTROLLER
|
|
MODEL
|
LC-48D
|
|
DIMENSION
|
96HX48WX108D
|
|
DISPLAY MODEL
|
|
|
SCALE RANGE
|
DIGITSETTING: 0 99.9oC, 0 199oC,0 999oC
|
|
INPUT TYPE
|
K GRADUATION, J GRADUATION, PLATINUM RESISTANCE Pt100
|
|
SETTING ACCURACY
|
Less than 1.5% full scale
|
|
INDICATED ACCURAY
|
Less than 1% full scale 2 number
|
|
CONTROL FORM
|
ON/OFF only, proporation(PD)
|
|
OUTPUT MODEL
|
Relay SPDT 5A 250VAC,12VDC for SSR drive
|
|
RAGED VOLTAGE
|
AC:110/220V 15%, 50/60Hz
|
|
PROPORTIONAL CYCLE
|
RELAY OUTPUT: 25SEC, SSR OUTPUT:2SEC
|
|
CONCUMED POWER
|
About: ≤3.5VA
|
|
ACCESSORY FUNCTION
|
Recongnition sensor break
|
|
AMBIENT TEMPERATURE
|
Temperature 0oC～+50oC Humidity≤85%RH
|
|
INSULATION STRNGTH
|
AC1500V, 1MIN (POWER END AND EXTERNAL JUNCTION END)
|
|
INRTULATION RESISTANCE
|
≥ 100M , DC500V (POWER END AND EXTERNAL JUNCTION END)
|
|
DIMENSION(mm)
|
|
|
CLASSIFICATION
|
48mmX96mm TEMPERATURE CONTROLLER
|
|
MODEL
|
LC-48S
|
|
DIMENSION
|
96HX48WX108D
|
|
DISPLAY MODEL
|
|
|
SCALE RANGE
|
DIGITSETTING: 0 99.9oC, 0 199oC,0 999oC
|
|
INPUT TYPE
|
K GRADUATION, J GRADUATION, PLATINUM RESISTANCE Pt100Ω
|
|
SETTING ACCURACY
|
Less than 1.5% full scale
|
|
INDICATED ACCURAY
|
Less than 2.5%
|
|
CONTROL FORM
|
ON/OFF only, proporation(PD)
|
|
OUTPUT MODEL
|
Relay SPDT 5A 250VAC,12VDC for SSR drive
|
|
RAGED VOLTAGE
|
AC:110/220V 15%, 50/60Hz
|
|
PROPORTIONAL CYCLE
|
RELAY OUTPUT: 25SEC, SSR OUTPUT:2SEC
|
|
CONCUMED POWER
|
About: ≤3.5VA
|
|
ACCESSORY FUNCTION
|
Recongnition sensor break,Alarm Action
|
|
AMBIENT TEMPERATURE
|
Temperature 0oC～+50oC Humidity≤85%RH
|
|
INSULATION STRNGTH
|
AC1500V, 1MIN (POWER END AND EXTERNAL JUNCTION END)
|
|
INRTULATION RESISTANCE
|
≥ 100M , DC500V (POWER END AND EXTERNAL JUNCTION END)
|
|
DIMENSION(mm)
|
|
|
CLASSIFICATION
|
48mmX96mm TEMPERATURE CONTROLLER
|
|
MODEL
|
LC-48DS
|
|
DIMENSION
|
96HX48WX108D
|
|
DISPLAY MODEL
|
|
|
SCALE RANGE
|
DIGITSETTING: 0 99.9oC, 0 199oC,0 999oC
|
|
INPUT TYPE
|
K GRADUATION, J GRADUATION, PLATINUM RESISTANCE Pt100Ω
|
|
SETTING ACCURACY
|
Less than 1.5% full scale
|
|
INDICATED ACCURAY
|
Less than 1% full scale 1 number
|
|
CONTROL FORM
|
ON/OFF only, proporation(PD)
|
|
OUTPUT MODEL
|
Relay SPDT 5A 250VAC,12VDC for SSR drive
|
|
RAGED VOLTAGE
|
AC:110/220V 15%, 50/60Hz
|
|
PROPORTIONAL CYCLE
|
RELAY OUTPUT: 25SEC, SSR OUTPUT:2SEC
|
|
CONCUMED POWER
|
About: 3.5VA
|
|
ACCESSORY FUNCTION
|
Recongnition sensor break, Alarm Action
|
|
AMBIENT TEMPERATURE
|
Temperature 0oC +50oC Humidity 85%RH
|
|
INSULATION STRNGTH
|
AC1500V, 1MIN (POWER END AND EXTERNAL JUNCTION END)
|
|
INRTULATION RESISTANCE
|
100M , DC500V (POWER END AND EXTERNAL JUNCTION END)
|
|
DIMENSION(mm)
|
|
|
CLASSIFICATION
|
72mmX72mm TEMPERATURE CONTROLLER
|
|
MODEL
|
LC-703
|
|
DIMENSION
|
72HX72WX110D
|
|
DISPLAY MODEL
|
|
|
SCALE RANGE
|
DIGITSETTING: 0 200oC, 0 400oC, 0 600oC, 0 800oC
|
|
INPUT TYPE
|
K GRADUATION, J GRADUATION, PLATINUM RESISTANCE Pt100Ω
|
|
SETTING ACCURACY
|
Less than 2.5% full scale
|
|
INDICATED ACCURAY
|
Less than 2.5%
|
|
CONTROL FORM
|
ON/OFF only, proporation(PD)
|
|
OUTPUT MODEL
|
Relay SPDT 5A 250VAC,12VDC for SSR drive
|
|
RAGED VOLTAGE
|
AC:110/220V 15%, 50/60Hz
|
|
PROPORTIONAL CYCLE
|
RELAY OUTPUT: 25SEC, SSR OUTPUT:2SEC
|
|
CONCUMED POWER
|
About: 3.5VA
|
|
ACCESSORY FUNCTION
|
Recongnition sensor break
|
|
AMBIENT TEMPERATURE
|
Temperature 0oC～+50oC Humidity 85%RH
|
|
INSULATION STRNGTH
|
AC1500V, 1MIN (POWER END AND EXTERNAL JUNCTION END)
|
|
INRTULATION RESISTANCE
|
|
|
